正置金相显微镜

UPRIGHT METALLURGICAL MICROSCOPE

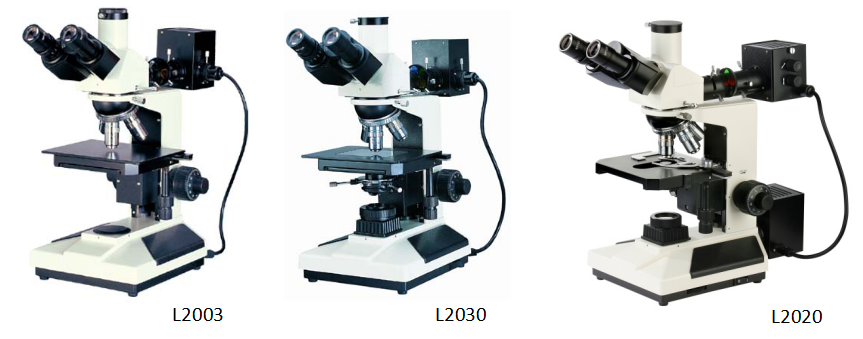

L2003/L2020/L2030

L2003/2020/2030系列正置金相显微镜适用于对不透明物体或透明物体的显微观察。配置优良的长工作距平场消色差物镜与大视野目镜，可提供卓越的光学性能。可选择落射，透射、落射同时或独立照明系统，适用于不同检测样品的要求，是金属学、矿物学、精密工程学、电子学等研究的理想装备。

L2003/2020/2030 series upright metallurgical microscopes are suitable to observe surfaces of opaque object or transparent object. They are equipped with excellent logne working distance plan achromatic objectives and wide field eyepieces, provited excellent optical quilatity and operation performance. Enable selection of the illumination mode, such as reflected, transmitted and reflected light working independently or synchronously, achieved the request of different sample checking. They are the ideal instruments in research work for metallography, mineralogy, precision engineering, electronics, etc.

技术规格 Specification
目镜Eyepiece	大视野 Wide field WF10X(Φ18mm)
物镜Objective	PL L5X/0.12 工作距离(Work distance)：18.3 mm
	PL L10X/0.25 工作距离(Work distance)：8.8 mm
	PL L40X/0.60（弹簧spring）工作距离(Work distance)：3.7 mm
	PL L60X/0.75（弹簧spring）工作距离(Work distance)：1.34 mm
目镜筒Eyepieces tube	三目镜, 30˚倾斜,内置检偏器Trinocular, Inclination of 30˚ and integrated analyzer
落射照明系统 Epi- illumination system	6V 20W卤素灯,亮度可调 6V 20W, halogen lamp, adjustable brightness
	内置视场、孔径光阑, 滤色片转换装置，插入式起偏振器Integrated field, aperture diaphragm and filter switching device. puller type polarizer.
	L2003/2030	配黄、蓝、绿滤色片与磨砂玻璃。 Equipped with Y, B,G filters and ground glass.
	L2020	配黄、蓝、绿、红滤色片。Equipped with Y, B,G,R filters.
透射照明系统 Transmitted-illumination system	外置视场光阑，6V 20W卤素灯,亮度可调。Outside field, aperture diaphragm, 6V 20W, halogen lamp, adjustable brightness.
	阿贝聚光镜 NA.1.25 可上下升降Abbe condenser NA.1.25 Rack & pinion adjustable
	L2030	配置蓝滤色片与磨砂玻璃片。Equipped with B filter and ground glass.
	L2020	配置蓝、绿滤色片与磨砂玻璃片。Equipped with B, G filters and ground glass.
调焦机构 Focus system	粗微动同轴调焦, 微动格值:2μm,带锁紧和限位装置Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm.
转换器 Nosepiece	四孔(内向式滚珠内定位) Quintuple Backward ball bearing inner locating
载物台 Stage	L2003/2030	双层机械移动式载物台，移动范围: 75mmX50mm，载物台外形尺寸：185mmX140mm. Double layer mechanical stage moving range is 75mmX50mm and overall size: 185mmX140mm .
	L2020	双层机械移动式载物台，移动范围: 75mmX50mm，载物台外形尺寸：160mmX140mm . Double layer mechanical stage moving range is 75mmX50mm and overall size: 160mmX140mm..
选配件 Optional Accessory	目镜Eyepiece	分划目镜10X(Φ18mm) Dividing eyepiece(:Φ18mm)
	物镜Objective	20X、50X、60X、100X(干式Dry）
	CCD接头 adapter	0.4X、0.5X、1X、0.5X带分划尺(With dividing)
	摄像仪 Camera	USB和VIDEO同时输出：Video输出(380/520 电视线)，USB输出(42万像素) USB and VIDEO synchronously output: VIDEO output(380/520 TV Line) USB output(0.42M pixel) USB输出：130/200/300万像素USB output: 1.3M/2.0M/3.0M pixel VIDEO输出：(380/520 电视线) VIDEO output: 380/520 TV Line
	数码相机接头 Digital camera adapter	CANON(EF) NIKON( F)

注：L2020透射与落射照明系统可独立控制。Note: The transmitted and reflected illumination system of the mode L2020 are controled independently.
